120kg-1200kg/h Corn Puff Making Machine/ Production Line For Rice, Maize Type
As a professional manufacturer of Corn Puff Making Machine, we have been in the field of Corn Puff Making Machine for 15 years. We are the supplier of Corn Puff Making Machine, our Corn Puff Making Machine design good manufacturing process. Corn Puff Making Machine can take corn, rice , wheat, oat, grains, potato flour, and others as raw materials, to make the cheese balls, corn curls, corn sticks, coco pops, cereal.
Specifications :
| Price | Contact Us |
| Brand Name | Loyal |
| Model Number | |
| Place of Origin | Shandong, China |
| Min.Order Quantity | 1 set |
| Payment Terms | L/C,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 20days / Snack Food Production Line |
| Delivery Detail | 20days--35days |
| Packaging Details | Wooden case or wooden pellets depended on clients' requirement |
Detail Introduction :
DESCRIPTION OF 120KG-1200KG/H CORN PUFF MAKING MACHINE/ PRODUCTION LINE FOR RICE, MAIZE TYPE
Corn puffs snack production line can use corn flour, rice flour, wheat flour and other grain powder as raw materials, to produce different shape puff snacks by changing the extruder mould, such as chips, ball, ring, stick, flake, flower shapes etc. Cheese ball snack making machine adopt advanced extrusion technology with high efficiency instead of traditional steam boiling process. It has features of continuous working, stable performance and reasonable design.
1.Main extruder is equipped with high and low pressure screw, which expands the scope of raw material, reduces the cost and modify the product quality.
2.Main product: Corn puffs snack production line can be used to produce many kinds of shapes as like round balls, rings, flower, heart shape, starts, animals, alphabetic ABC or 123 and so on.
3.Rice puffing snack machine performance and products quality reach to the most advanced level in the world.
4.High efficiency, low consumption, easy to operate and maintain.
5.Materials: adopts rice powder, corn powder, millet powder, wheat powder, oats, buckwheat, bean, starch, etc.
TECHNICAL PARAMETERS FOR 120KG-1200KG/H CORN PUFF MAKING MACHINE/ PRODUCTION LINE FOR RICE
| Product Name | Full automatic corn puffs snack production line/cheese ball snack making machine/rice puffing snack machine |
| energy | You can choose electricity or gas or diesel or steam as some machine energy |
| Standard | The motor most of with Siemens made in china or china top brand inverter, also with good brand electrcity parts |
| Function | Multiple |
| Type | Twin screw extruder machine |
| Application | Corn puffs snack production line |
| Capacity | 100 kg/h, 150 kg/h, 250 kg/h, 500 kg/h, 1000 kg/h |
| Voltage | Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries |
| Machines Materials | All the corn puffs snack production line are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function |
SAMPLE PICTURES OF 120KG-1200KG/H CORN PUFF MAKING MACHINE/ PRODUCTION LINE FOR RICE
Crustaceans, crispy corners, shell crisps, brown rice rolls, small screws, salads, pizza rolls, cat's ear crisps, escargots, oat rolls, etc.

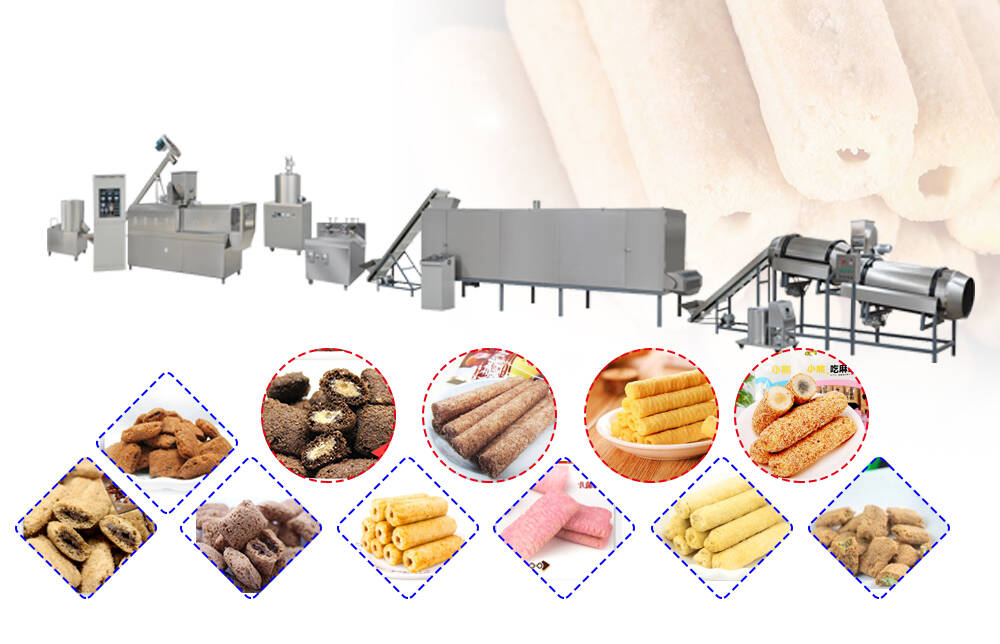

FLOW CHART OF 120KG-1200KG/H CORN PUFF MAKING MACHINE/ PRODUCTION LINE FOR RICE,
Mixing system---Extrusion system----Cutting system---Drying system---Flavoring System
TECHNICAL PARAMETERS FOR 120KG-1200KG/H CORN PUFF MAKING MACHINE/ PRODUCTION LINE FOR RICE
| Model | Output | Size (L*W*H) |
| LY65 | 120-150kg/h | 21000x1200x2200mm |
| LY70L | 200-250kg/h | 23000x1500x2200mm |
| LY85 | 300-500kg/h | 28000x3500x4300mm |
| LY75 | 400-500kg/h | 24000*2000*2800 |
| LY95 | 800-1200kg/h | 31000*3500*4300 |
BRIEF INTRODUCTION OF MAIN MACHINES
| Mixer | Mix the ingredients (corn flour, rice flour, flour, etc.) well and then add a certain amount of water to mix well. |
| Screw Hoister | Using the motor as the power spiral conveying, the mixed raw materials are conveyed to the feeding hopper of the extruder, ensuring convenient and quick feeding. |
| Double Screw Extruder | According to the production line output choose different models of puffing extruder, output varies, raw materials can be corn flour, rice flour, flour, grain flour and other raw materials. |
| PVC hoister(Air Conveyor) | Transporting puffed food to the dryer |
| Dryer | The temperature of the oven is between 0-200℃, which can be adjusted by the control cabinet. The inside is a stainless steel double-layer mesh. The baking time can be adjusted according to the speed. Through the baking, the puffed food can penetrate to a certain extent, increase the taste, and reduce material moisture at the same time increases the shelf life. |
| Cutting machine | The multifunctional plastic cutting machine has multiple functions of traction, transportation, shaping and cutting. It is generally used to cut small foods such as cylindrical, flat and long tubes, such as sandwiched rice crackers, rice old heads and other semi-puffed or non-puffed foods, or more Long sandwich food. |
| Flavoring Machinery | According to the output and product properties, different types of seasoning systems are configured, and there are also equipment for oil spraying, sugar spraying, and coating etc,. |
| (Adoptional Machinery: Grinding Machinery,Packing Machinery) |

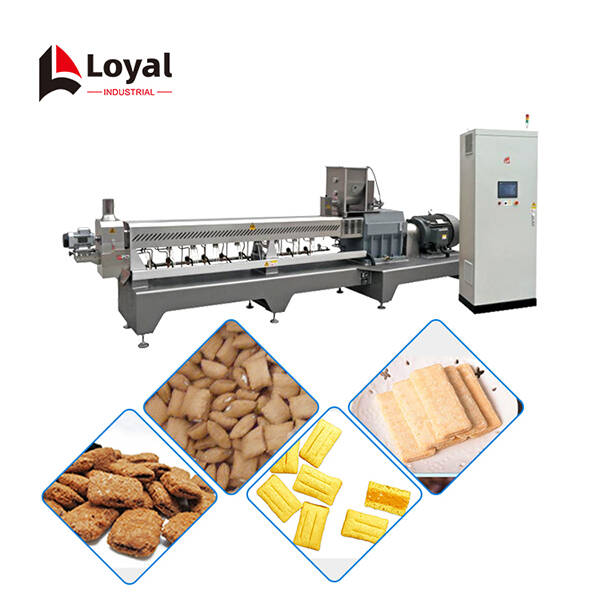

FEATURES OF DOUBLE SCREW EXTRUDER
The machine is composed of a feeding system, an extrusion system, a rotary cutting system, a heating system, a transmission system, and a control system. It adopts advanced screw extrusion technology and uses high temperature and high pressure to mature and expand the material into one-time completion. The host adopts frequency conversion speed regulation to ensure the stability of the production process. Product colors, varieties, beautiful appearance, natural and lifelike, delicate texture, wide use of raw materials.
| 1 | Series of double-screw extruder mainly consist of feeding system, extruding system, cutting system, heating system, lubricating system and controlling system. |
| 2 | Automatic lubricating and forced cooling make sure that extruder performs safely and extends using life. |
| 3 | Feeding system, extruding system and cutting system all adopt frequency conversion timing to gain powerful drive, stable perform, and electricity saving. |
| 4 | Screw are made of alloy and processed by special technique to possess high intensity, abrasion resistant and longer using life. |
| 5 | There are six sections of heaters, controlled by PID models; there are thermocouple sensors |
| 6 | There are frequency converters for main motor, paper cutter and paper feeder; various speeds are available |
| 7 | The screw is made of 38CrMoAL; after nitriding; the hardness is HRC55-60 |
| 8 | There is an additional cooling system in the lubricating oil tank to ensure the cooling oil at low temperatures |
WHY CHOOSE US?
COMPANY PROFILE OF LOYAL INDUSTRIAL
Loyal brand was famous well-known at global and domenstic market, and it is sold to more than 50 countries and regions, with ISO system, SGS certificate, 10 CE certificates, and 25 patents on Technology Patent, since then, we keep forward on the quality control, new technology developing and the better customer service.
Shandong Loyal Industrial Co., Ltd. is actually specialist manufacturer of meals equipment, snack foods machines. Experienced developers is helping us whose project is to research brand-new machines, design for clients, compensation equipment for customers. 1 day's solution as well as 15 after sales solution staffs aid our clients to handle all the errors of our devices immediately.
We are professional manufacturer of food machine. We mainly deal with the manufacture, research and development of the snacks food machinery. According to clients' different demands, we could offer the whole complete processing line for all kinds of expanded snacks, 2D and 3D pellet, potato chips, corn flakes, nutrition powder, pet food and so on. And our technical assistance will help clients produce high quality products all the time.
OUR SERVICE
| Service for Pre-sale | Service for After-sale |
| 1.Provide technical parameter 2.Factory layout and size suggestion 3.Provide general formulation 4.Custom-Design service 5.Professional Advice about Market, machines, materials, packing 6. Suggesting professional ship agent or helping book ship as customer request. 7. 24 hours online service. | 1.Allocation chart as the buyer's request will be supplied. 2.Operation manual will be supplied after shipment. 3.One year w arrantee, life time maintenance with cost price. 4.Free easy broken spare parts will be sent with container . 5.First installation can be done by engineer. 6.Training workers in customer's factory. |
